: Catalog No. SN1HA47FF3

Part No. SN1HA47FF3
Supplier Merck KGaA

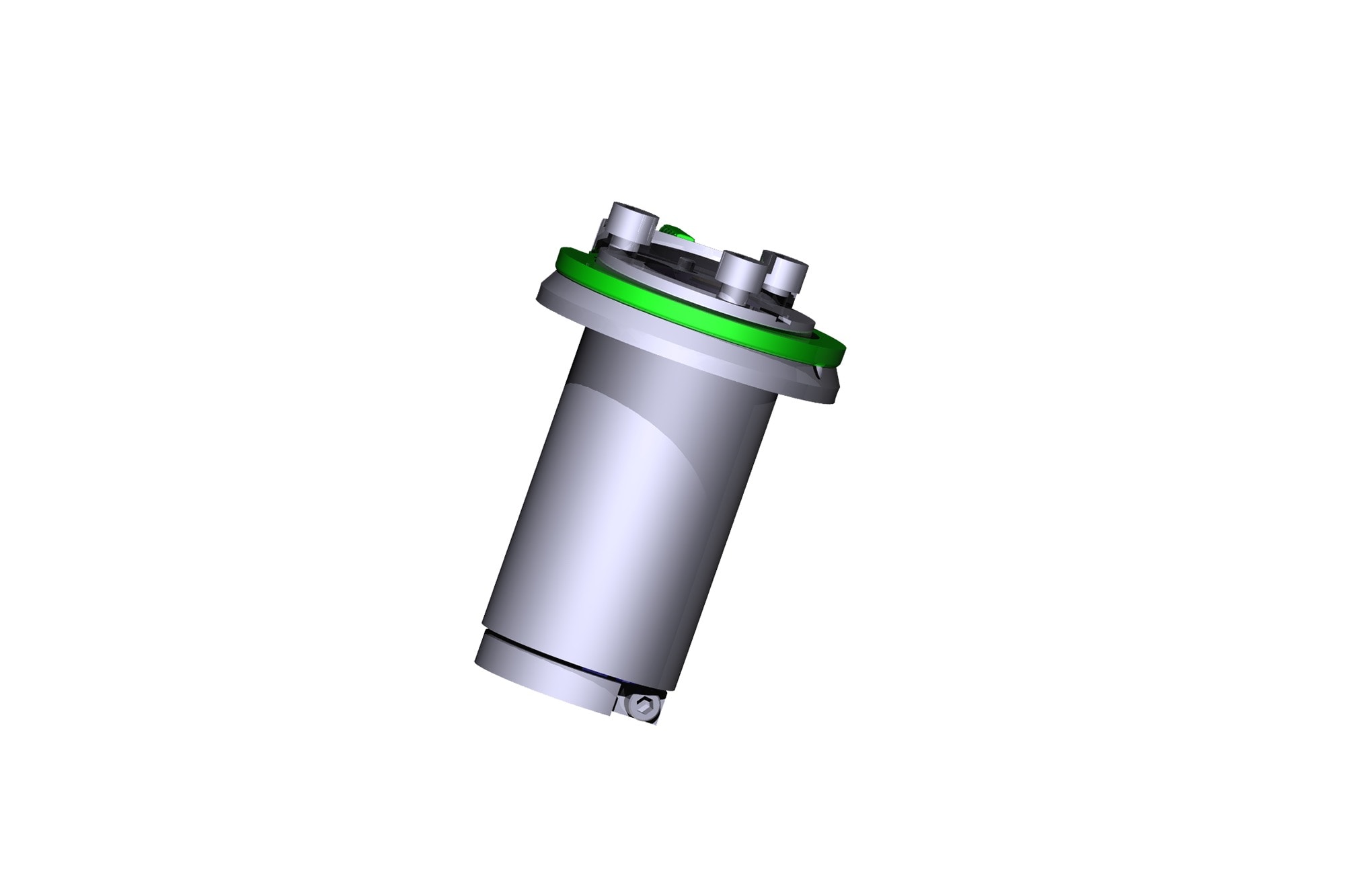

Optiscale® Capsule Polygard®-CN 10 µm 3/4 in. TC/TC

Net Price

89

Availability

4 weeks

PROPERTIES

Bacterial Endotoxins

Aqueous extraction contains ≤0.25 EU/mL as determined by the Limulus Amebocyte Lysate (LAL) Test
Catalogue Number

SN1HA47FF3
Chemistry

Polypropylene (PP)
Device Configuration

Capsule
Device Material

Polycarbonate
Diameter

6.9 cm (2.7 in.)
Filtration Area

17.7 cm²
Format

Single Layer
Good Manufacturing Practices

These products are manufactured in a facility which adheres to FDA Good Manufacturing Practices.
Indirect Food Additive

All component materials meet the FDA Indirect Food Additive requirements cited in 21 CFR 177-182.
Inlet Connection

Sanitary Flange
Inlet Connection Diameter

3/4 in.
Material Size

3
Maximum Inlet Pressure (psig)

80 psig
Maximum Inlet Pressure, bar (psi)

5.5 bar (80 psi) @ 25 °C
Maximum Inlet Temperature

25 °C
Media

Polygard®-CN
Nominal Pore Size

10.0 µm
Outlet Connection

Sanitary Flange
Outlet Connection Diameter

3/4 in.
Oxidizable Substances

Will meet the USP Oxidizable Substances Test requirements after a water flush of ≥100 mL
Pore Size

10.0 µm
Seal Material

Fluoroelastomer (FKM)
Sterilization

3 autoclave cycles of 60 min @ 126 °C; not in-line steam sterilizable
Support Material

Polypropylene
Trade Name

OptiScale®
Vent Cap Material

Polyvinylidene fluoride (PVDF)
