Catalog No. SN25A47FH3
Part No. SN25A47FH3
Supplier Merck KGaA
Optiscale® Capsule Polygard®-CN 2.5 µm 3/4 in. TC-1/4 in. HB
Net Price
89
Availability

4 weeks

PROPERTIES
  • Bacterial Endotoxins
    Aqueous extraction contains ≤0.25 EU/mL as determined by the Limulus Amebocyte Lysate (LAL) Test
  • Catalogue Number
    SN25A47FH3
  • Chemistry
    Polypropylene (PP)
  • Device Configuration
    Capsule
  • Device Material
    Polycarbonate
  • Diameter
    6.9 cm (2.7 in.)
  • Filtration Area
    17.7 cm²
  • Format
    Single Layer
  • Good Manufacturing Practices
    These products are manufactured in a facility which adheres to FDA Good Manufacturing Practices.
  • Indirect Food Additive
    All component materials meet the FDA Indirect Food Additive requirements cited in 21 CFR 177-182.
  • Inlet Connection
    Sanitary Flange
  • Inlet Connection Diameter
    3/4 in.
  • Material Size
    3
  • Maximum Inlet Pressure (psig)
    80 psig
  • Maximum Inlet Pressure, bar (psi)
    5.5 bar (80 psi) @ 25 °C
  • Maximum Inlet Temperature
    25 °C
  • Media
    Polygard®-CN
  • Nominal Pore Size
    2.5 µm
  • Outlet Connection
    Hose Barb
  • Outlet Connection Diameter
    1/4 in.
  • Oxidizable Substances
    Will meet the USP Oxidizable Substances Test requirements after a water flush of ≥100 mL
  • Pore Size
    2.5 µm
  • Seal Material
    Fluoroelastomer (FKM)
  • Sterilization
    3 autoclave cycles of 60 min @ 126 °C; not in-line steam sterilizable
  • Support Material
    Polypropylene
  • Trade Name
    OptiScale®
  • Vent Cap Material
    Polyvinylidene fluoride (PVDF)
DESCRIPTION
Genuine product
CUSTOMERS ALSO VIEWED

Waters Corporation     WATS-430003211

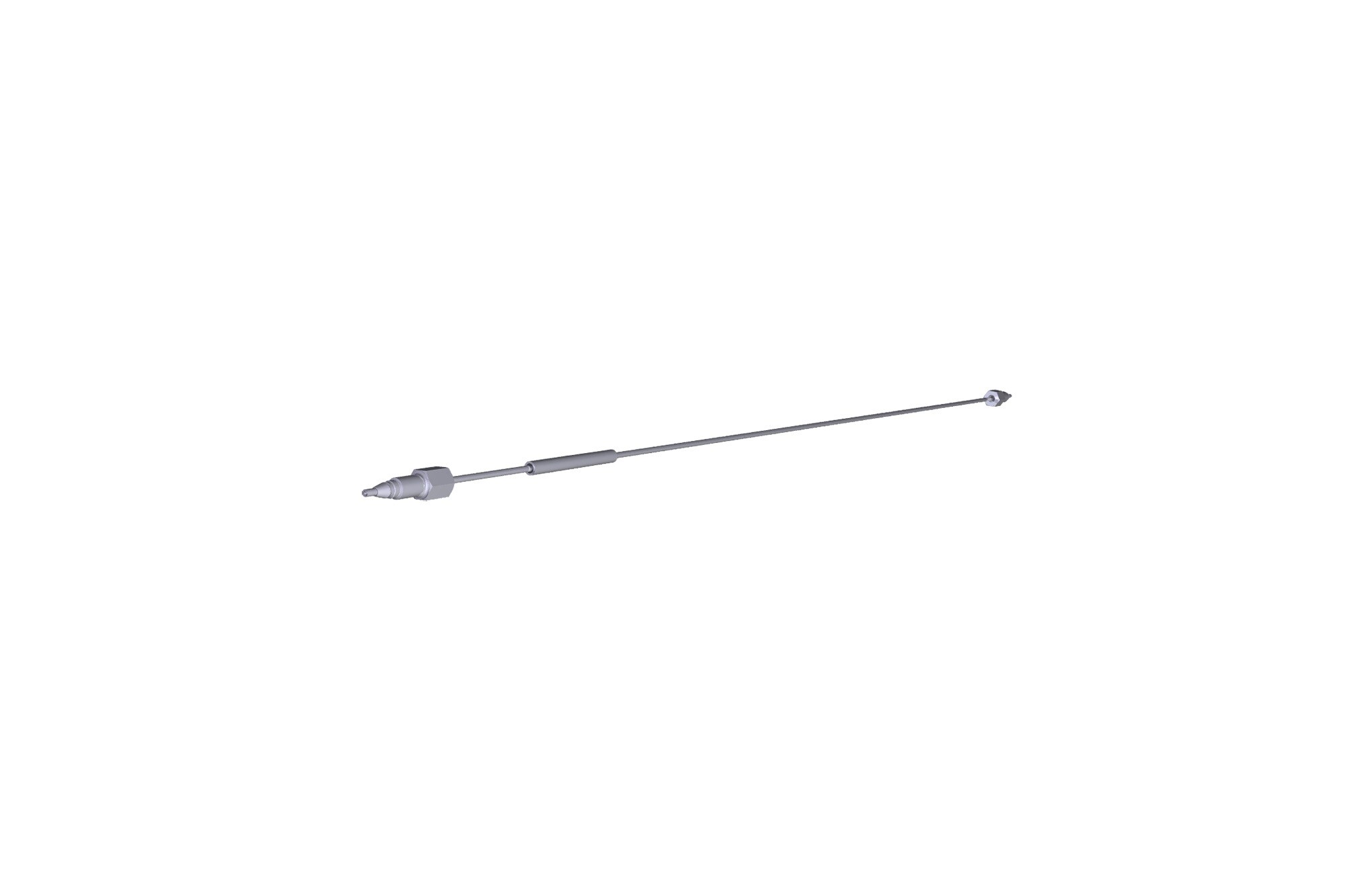

Tubing Assembly, SS .062 x .007 x 14.5 Au

297 /Each

MACHEREY‑NAGEL     MN711034.1000

LC packing material (adsorbents, bulk), silica gel, POLYGOPREP 100-130

Special offer /Each

Metrohm AG     METR6.0280.300

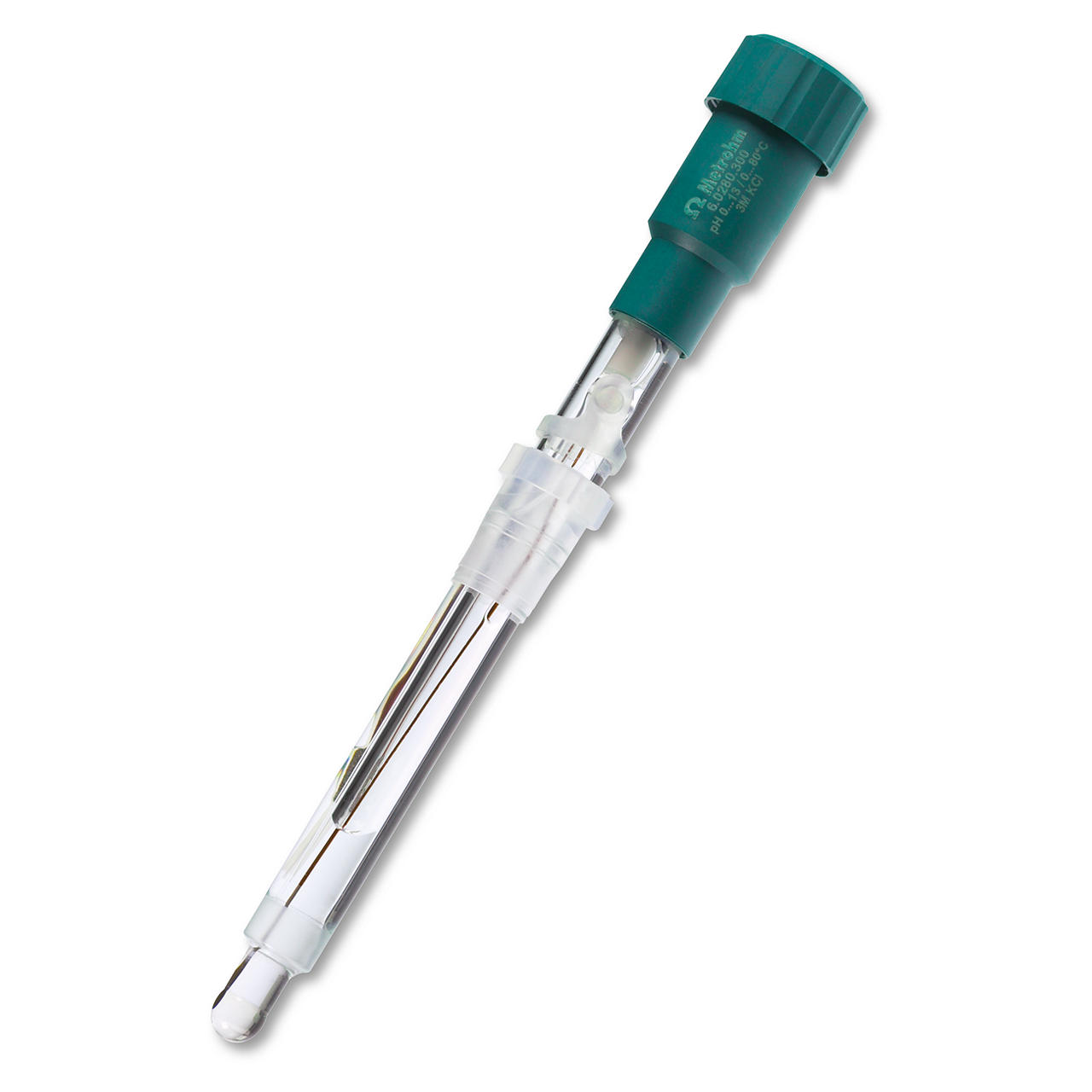

iEcotrode Plus
